Description
Sku: E14364-2
Rosemount No. 0306RT22BA21

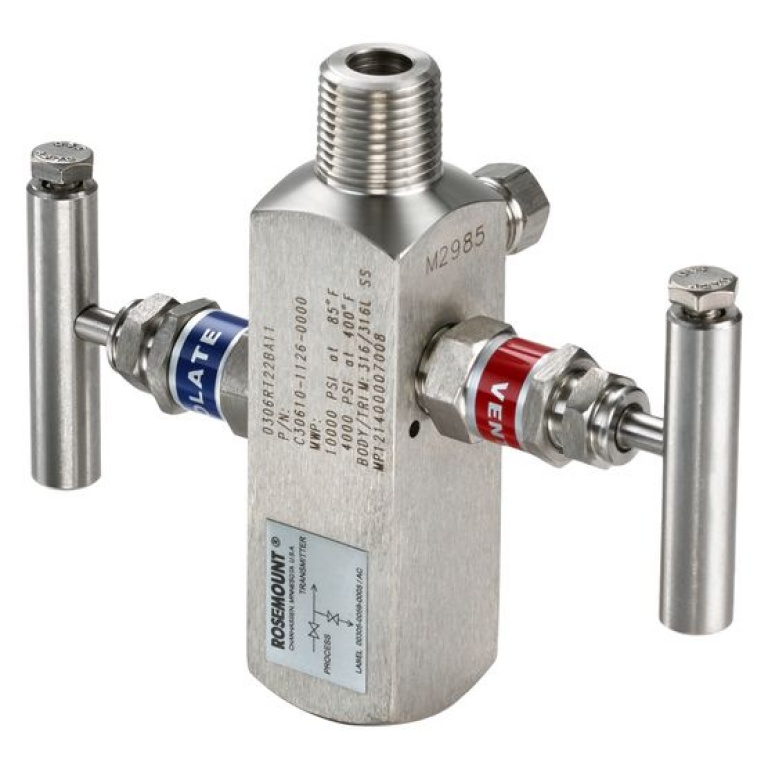

Rosemount 306 In-Line Manifold
The Rosemount 306 in-line manifold is designed for in-line transmitters. The manifold has externally threaded or internally threaded NPT process connections, which can be directly assembled to pressure transmitters and pressure gauges for simple process calibration. The manifold has a block and discharge and 2-valve configuration for instrument isolation and discharge/discharge functions. It has been assembled to the transmitter and instrument at the factory, and has been leak tested and calibrated.
Specifications
- Maximum Operating Temperature 1000°F (538°C)
- Manifold Material 316 SST/316L SST, Alloy C-276, Alloy 400
- Packing Material PTFE, Graphite-based
- Process Connections 1/2″ -14 male NPT, 1/2″ -14 female NPT
- Process Connection Orientation Parallel with transmitter
- Certifications/Approvals Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications
