Description
Sku: E14364-1
Rosemount No. 0305RC92B21B4

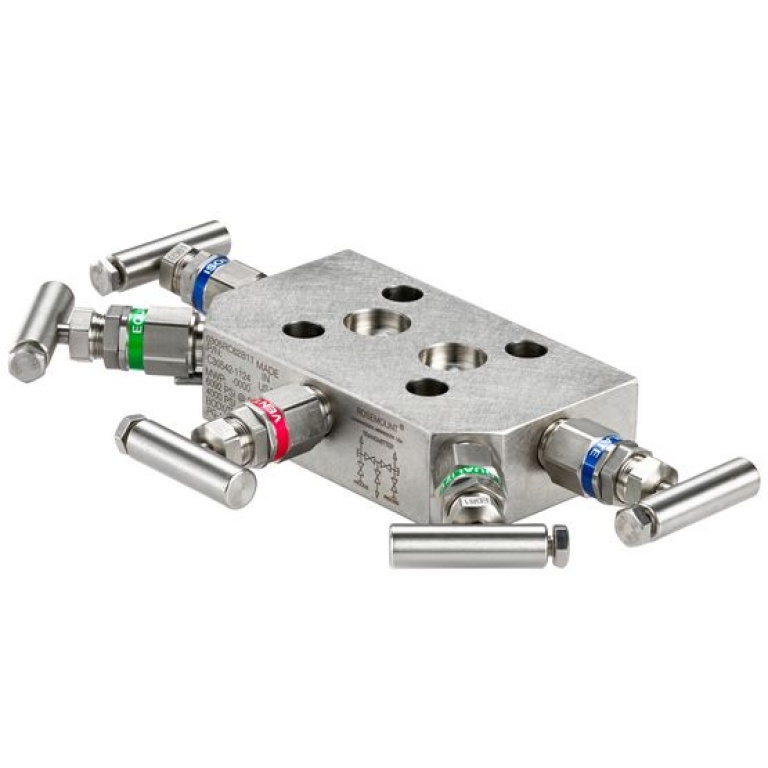

Rosemount 0305 Integral Manifold
The Rosemount 305 integral valve manifold connects directly to the patented Rosemount Coplanar™ transmitter without the need for flanges. This lightweight, best-in-class manifold uses 2-valve, 3-valve, and 5-valve configurations to enable instrument isolation, controlled exhaust, and additional leakage protection to ensure measurement integrity. The product can be assembled to the transmitter at the factory for leak testing, and can be used with multivariable, static pressure and differential pressure transmitters.
Specifications
- Maximum Operating Temperature 1000°F (538°C)
- Manifold Material 316 SST/316L SST, Alloy C-276, Alloy 400
- Packing Material PTFE, graphite-based
- Process Connections 1/4“-18 NPT female, 1/2“-14 NPT female, 1/2“-14 female NPT flange adapter, 12 mm ferrule tube flange adapter
- Process Connection Orientation Parallel with transmitter, 90° to transmitter
- Certifications Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications
