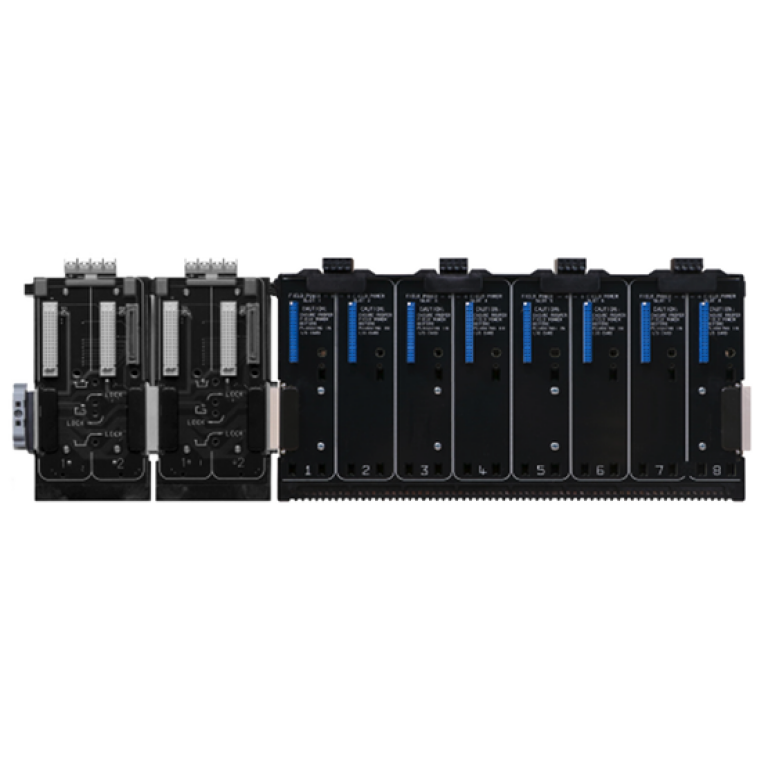

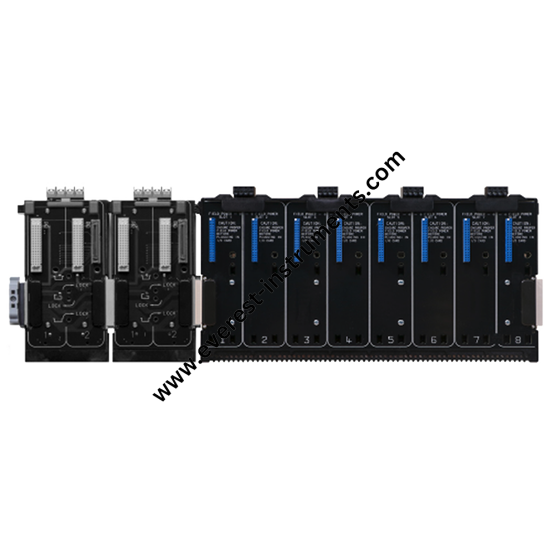

DeltaV™ M-series I/O Subsystem Horizontal Carriers.
The I/O interface carrier plugs on to the power/controllercarrier. The power/controller carrier supplies the system power and communications between the I/O interfaces andthe controller. The controller processes the I/O interface information. An additional power/controller carrier is required for use with redundant controllers.
Mount your interface carrier on a T-type DIN rail. The I/O interface carrier includes the connections for the bulk 24 V DC field instrument power, I/O interfaces, and terminal blocks.
Each I/O interface carrier is equipped with a connector that allows an additional I/O interface carrier to be plugged on to it. Up to 64 I/O interfaces on eight 8-wide I/O interface carriers are supported by a single I/O subsystem. For the horizontal-mount solution, 1-wide local bus extenders allow you to continue the I/O bus on a different row of carriers. There are two types of 8-wide I/O interface carriers available. They both have connectors for field power on the top of the carrier. The original carrier connects each set of field power terminals to two I/O cards, and the other option have individual field power per card slot and is ideal if separate field power is required for redundant I/O cards.
