Description

Sku: 23627

Delivery: 4-6 weeks

Yokogawa Part No. YTA610-FA2A4DB/KU2

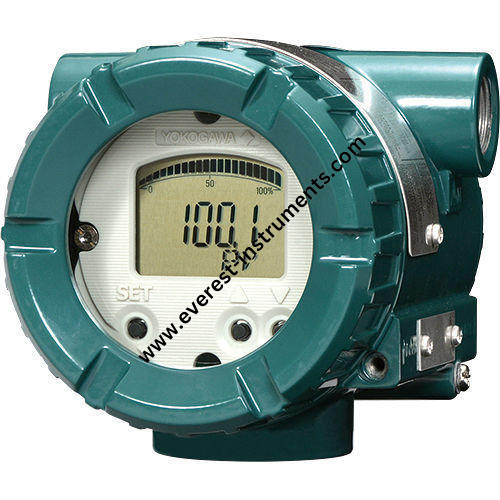

Yokogawa Temperature Transmitter

The YTA610 provides high accuracy, stability, and reliability. The housing structure adopts reliable dual-compartment structure. The sensor input can be choice of single or dual inputs. This input can accept the RTD, thermocouple, ohm, or DC millivolt. It converts the sensor input to a 4 to 20 mA DC analog signal or Fieldbus digital signal. HART 7 Protocol or FOUNDATION™ Fieldbus ITK 6 version are available. The dual input can accept two sensors calculation of the differential or average value and the sensor backup function. Sensor backup functions for automatically switches-over from the primary to the backup upon sensor failure. By adoption of local parameter switch on the Indicator, it becomes easy to do the on-site setting work.

Brochures

•  YTA610/YTA710 Temperature Transmitter – Total Insight – (7.0 MB)

Instruction Manuals

•  YTA610 and YTA710 Temperature Transmitter (Hardware) (3.9 MB)
•  YTA610 and YTA710 Temperature Transmitter (HART Protocol) (2.0 MB)
•  YTA610 and YTA710 Temperature Transmitter Fieldbus communication * See Manual Change 18-0031-E (4.7 MB)
•  Manual Change 18-0031-E (1.9 MB)
•  YTA610 and YTA710 NEPSI Certification [Option code: /NS2, /NS25 and /NF2] (411 KB)
•  YTA610 and YTA710 Temperature Transmitters (Korean) (3.4 MB)
•  YTA610 and YTA710 Temperature Transmitters (Hardware) (Portuguese) *See Manual Change 17-022 (2.1 MB)
•  Manual Change 17-022 (2.1 MB)

General Specifications

•  YTA610 Temperature Transmitter (750 KB)

Software

•  Yokogawa DTM HART
•  Yokogawa DTM FOUNDATION Fieldbus
•  Fieldbus DD/CF file – YTA610 Temperature Transmitters

Technical Information

•  FMEDA YTA610 No. YEC 15/10-041 R002 V1R6 (1.5 MB)

Drawings

•  YTA710 Temperature Transmitter (283 KB)
