Description
Honeywell TRANSMITTER is a Transmitters supplied by Everest Instruments. It is a genuine Honeywell part, sourced through authorized channels with a 8-12 weeks lead time.
- Manufacturer part number: TRANSMITTER
- Model: STG700 The SmartLine
- Type: Transmitters
- Everest SKU: 19795-4
- Lead time: 8-12 weeks
Product details
Sku: 19795-4
Honeywell STG74L-E1H000-1-C-AHB-11S-B-0-1A6-F1-0000
Honeywell Model: STG700

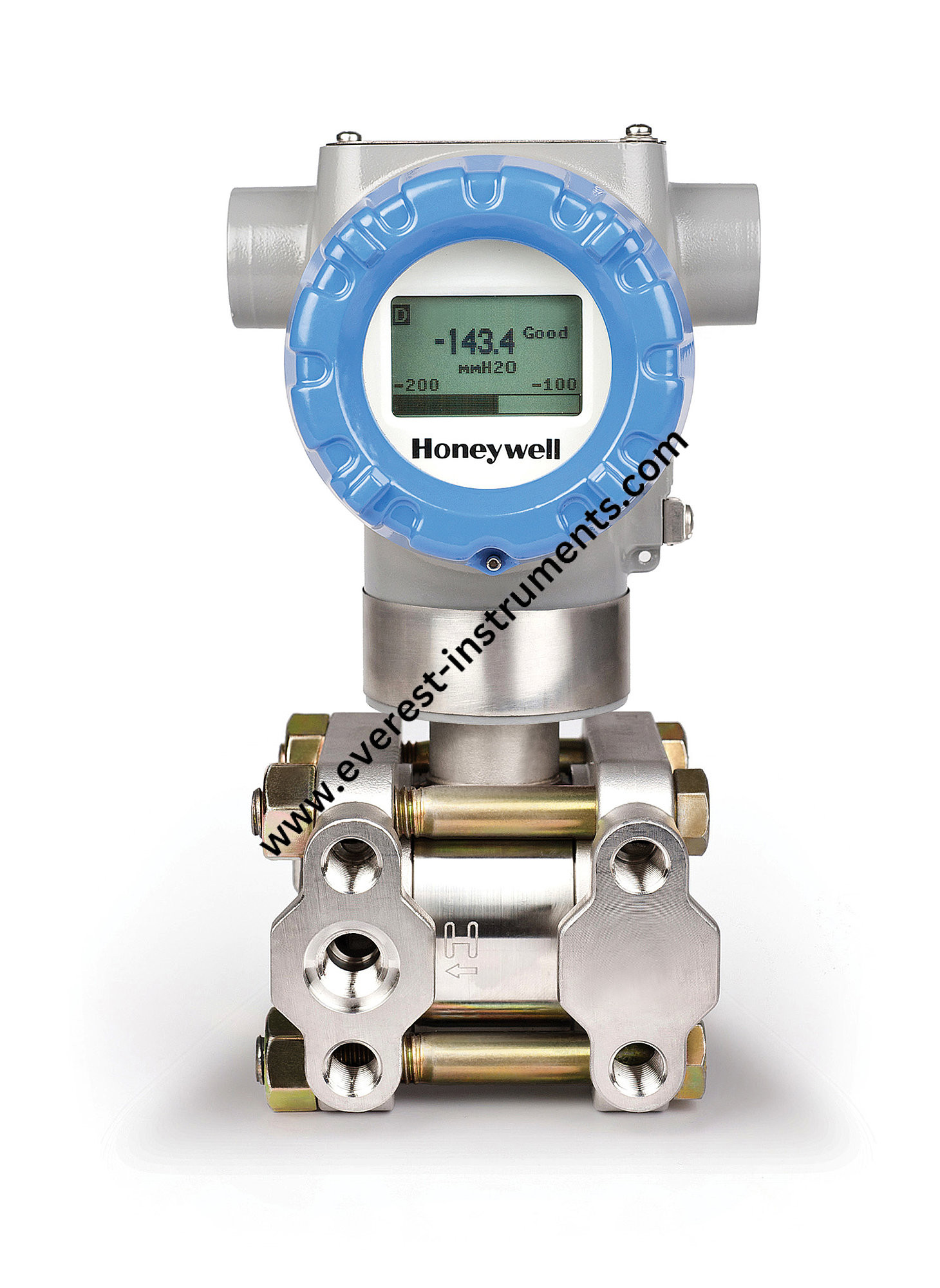

The SmartLine®ST700 gauge pressure transmitter is ideal for applications ranging from high pressure measurement in boilers and fuel feeds to tank level measurement where process temperatures are relatively high. Users can choose dual-head and tandem models to meet their process interface requirements.
Dual Head Gauge Pressure Transmitters are suited for typical applications involving reaction vessels in the chemical industry and level applications with process temperatures up to 257°F /125°C.
In-Line transmitters are screwed directly onto a 1/2” male NPT nipple and can be installed in hazardous environments for accurate, repeatable pressure measurement. Typical applications include high-pressure measurement in boilers, fuel feeds and high-pressure reaction vessels in the petrochemical and hydrocarbon recovery industries.
The following models are available:
• STG740/ STG745/ STG74L/ STG74S 0-500 psi 0-35 bar
• STG770/ STG775/ STG77L/ STG77S 0-3,000 psi 0-210 bar
• STG78L/ STG78S 0-6,000 psi 0-420 bar
• STG79L/ STG79S 0-10,000 psi 0-690 bar
