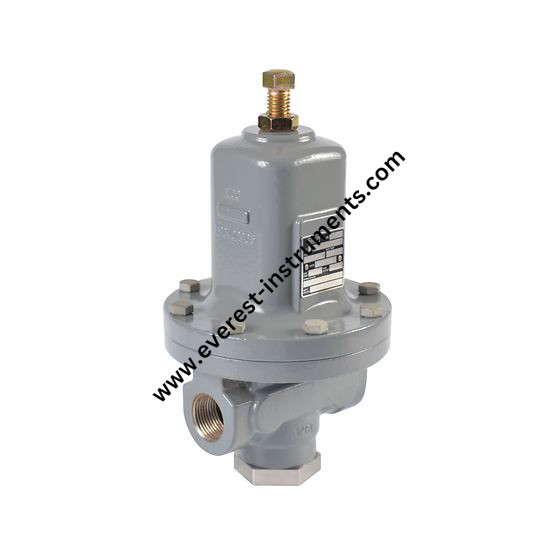

Fisher MR95 Series Pressure Regulator
Sku: 22245-1
Fisher (Emerson) M95L-3068-4366594
The Fisher MR95 series regulators are compact, high capacity and direct operation pressure regulators. Typical applications include superheated steam, steam injection, steam tracing, nitrogen purge, boiler feed water, process chemicals, cooling water, test accessories, wash tanks, sterilizers / autoclaves, fuel lines, pneumatic supply and many others.
Features
- Versatility
- Differential Pressure Capability
- Special Service Capabilities
- Large Turndown Ratio
- Graphite Gaskets
- Set Pressures to 400 psig / 27.6 bar
- Tight Shutoff with Elastomer Seats
- Easy Maintenance
- Arctic and Cryogenic Temperature Constructions Options
Specifications
- MR95L: 2 to 30 psig / 0.14 to 2.1 bar outlet pressures
- Available High Pressure Configurations:
- MR95H: 5 to 150 psig / 0.35 to 10.3 bar outlet
MR95HP: 15 to 400 psig / 1.0 to 27.6 bar outlet
MR95HT: 15 to 300 psig / 1.0 to 20.7 bar outlet and up to 650°F / 343°C
- Available Pressure Differential Configurations:
- MR95LD: 2 to 30 psi / 0.14 to 2.1 bar differential
MR95HD: 5 to 150 psi / 0.35 to 10.3 bar
MR95HDP: 5 to 150 psi / 0.35 to 10.3 bar with max inlet of 600 psig / 41.4 bar
- Body and Spring Case Materials:
- Gray Cast Iron
WCC Steel
LCC Steel
Stainless Steel
Special Alloys: Monel®, Hastelloy® C, Aluminum-Bronze
Contact Sales Office for Special Alloys
- Body Size:
- 1/4-inch
1/2-inch / DN 15
3/4 and 1-inch / DN 20 and 25
1-1/2 and 2-inch / DN 40 and 50 (not available for Types MR95L and MR95LD)
- End Connection Styles:
- NPT, SWE, and Welded and Integral CL150 RF, CL300 RF, CL600 RF, and PN 16/25/40 RF; all with 14-inch face-to-face (EN flanged-356 mm face-to-face)
- Maximum Inlet Pressure: 1000 psig / 69.0 bar
- Maximum Outlet Pressure: 450 psig / 31.0 bar
- Pressure Registration: Internal or External
- MR95H Series Approximate Weights
- 1/4 NPT body: 5 lb / 2.3 kg
1/2-in / DN 15 body: 10 lb / 4.5 kg
3/4 and 1-in / DN 20 and 25 bodies: 22 lb / 10 kg
1-1/2 and 2-in bodies / DN 40 and 50: 55 lb / 25 kg
- MR95L Series Approximate Weights
- 1/4 NPT body: 7 lb / 3.2 kg
1/2-in / DN 15 body: 15 lb / 6.8 kg
3/4 and 1-in / DN 20 and 25 bodies: 35 lb / 16 kg
