Description
Sku: E12660
Fisher No. DLC3010
4-20mA 2 wires
Power supply: 24Vdc

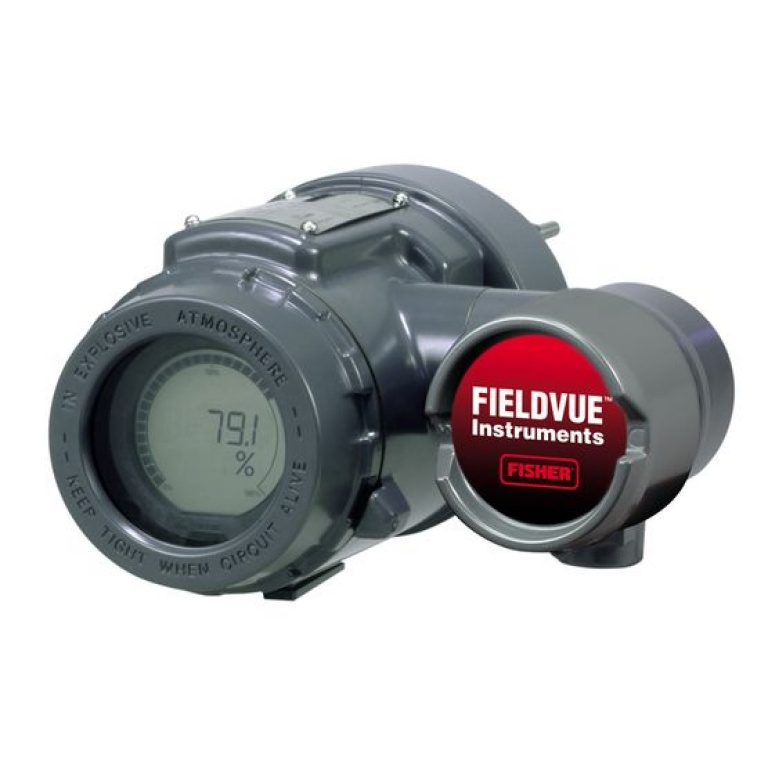

The FIELDVUE DLC3010 digital level controller is used with level sensors to measure liquid level, the level of the interface between two liquids, or liquid specific gravity (density). Changes in level or specific gravity exert a buoyant force on a displacer, which rotates a torque tube shaft. The digital level controller converts this rotational motion to an electronic signal.
The DLC3010 is a communicating, microprocessor-based instrument that can be configured to sense the level, interface level, or density of liquids. In addition to the normal function of
providing a 4 to 20 milliampere current signal, the DLC3010, using HART® communications protocol, gives easy access to information critical to process operation. You can obtain information about the process, instrument, or sensor using the 475 or 375 Field Communicator. The DLC3010 can be used in analog or HART digital signaling mode with the Emerson Automation Solutions DeltaV™ system.
Available Configurations
DLC3010 Digital Level Controller:
Mounts on caged and cageless 249 sensors. See
tables 4 and 5 and sensor description.
Function: Transmitter
Communications Protocol: HART
