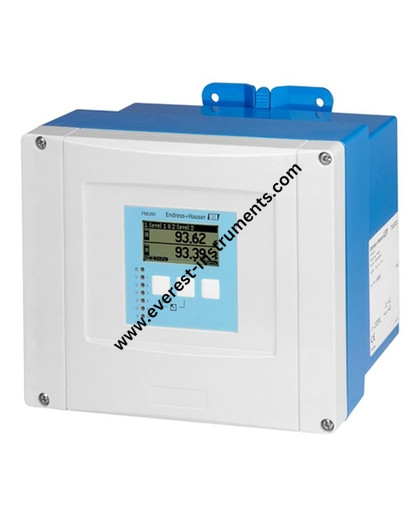

Endress + Hauser FMU90 Ultrasonic measurement Time-of-Flight Prosonic

Description

Sku: 23424

Delivery: 8-10 weeks

Endress+ Hauser No. FMU90-R11CA131AA1A

The separate Prosonic FMU90 version with field housing or top rail housing for control cabinet instrumentation is suitable for continuous level measurement, without contact of fluids, pastes, sludge and bulk dusty bulk solids. It is also possible to measure flow in open channels and landfills as simultaneous measurement of level and flow in a rainwater overflow basin with only 1 sensor. Up to 6 relays for trend alarm, flow pulse output or recoil / mud alarm, 1 or 2 channel version.

• Simple, menu-guided operation with 6-line plain text display, 15 languages selectable

• Envelope curves on the display for quick and simple diagnosis

• Easy operation, diagnosis and measuring point documentation with the supplied “FieldCare” operating program

• Time-of-Flight correction via integrated or external temperature sensors

• Linearisation (up to 32 points, freely configurable) for the most common flumes and weirs
  pre-programmed and selectable

• Online calculation of the flume-/weir-flows via integrated flow curves

• Automatic detection of the sensors FDU9x
